Cutting work for bronze or brass bars
Use of the combined CNC machine reduces the number of processes and allows complicated cutting work.
A single process using the combined CNC machine turns a workpiece relatively large in diameter into a processed or finished product, which advances the delivery date and reduces costs.
* See large photo (opens in another window).
| Material |
| Brass and Bronze. Lead free Brass and Bronze. |
| Material size |
| Continuous cutting from φ 44 mm × L 3000 mm |
| Finished product size |
| φ43.5 mm, 125 mm in overall length |
| Details of processed product |

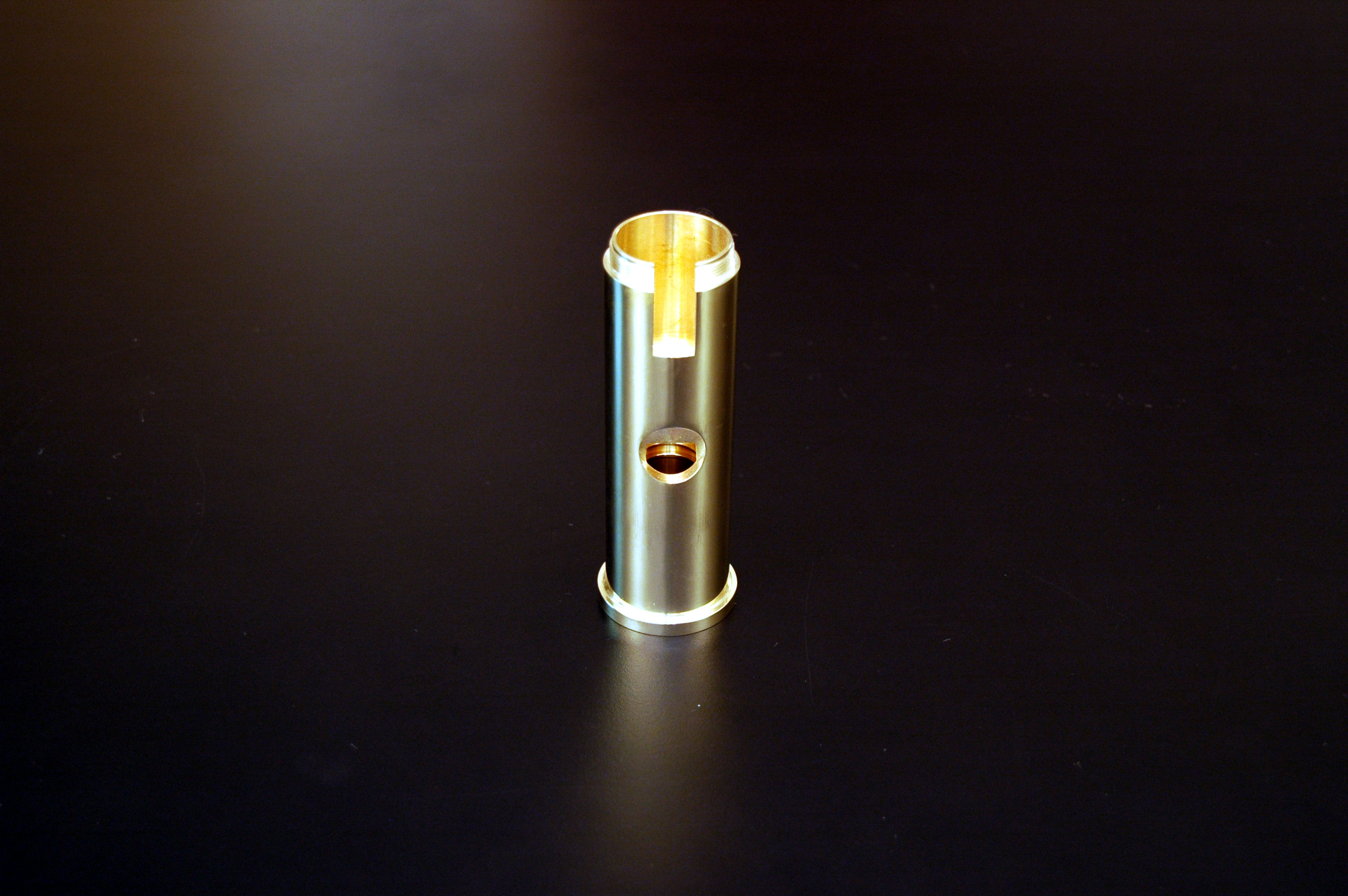

| The pierced bore in the workpiece 125 mm in overall length has an O-ring groove and screw processing. |
| It has a slit in addition to 1 cross hole. |
| Equipment features |
| The Y-axis is equipped in addition to the C-axis. The bar type can process a workpiece as large as φ51 mm. The chucker type can process a workpiece up to φ200 mm. |
Use of the NC lathe and machining center
The use of various equipment and the machining center improves productivity while maintaining processing accuracy.
This allows a smooth transition from trial production through commercialization to mass production.
| Material |
| Brass and Bronze. Lead free Brass and Bronze. |
| Material size |
| Continuous cutting from φ32 mm × L 3000 mm |
| Finished product size |
| φ31 mm, 40 mm in overall length |
| Details of processed product |

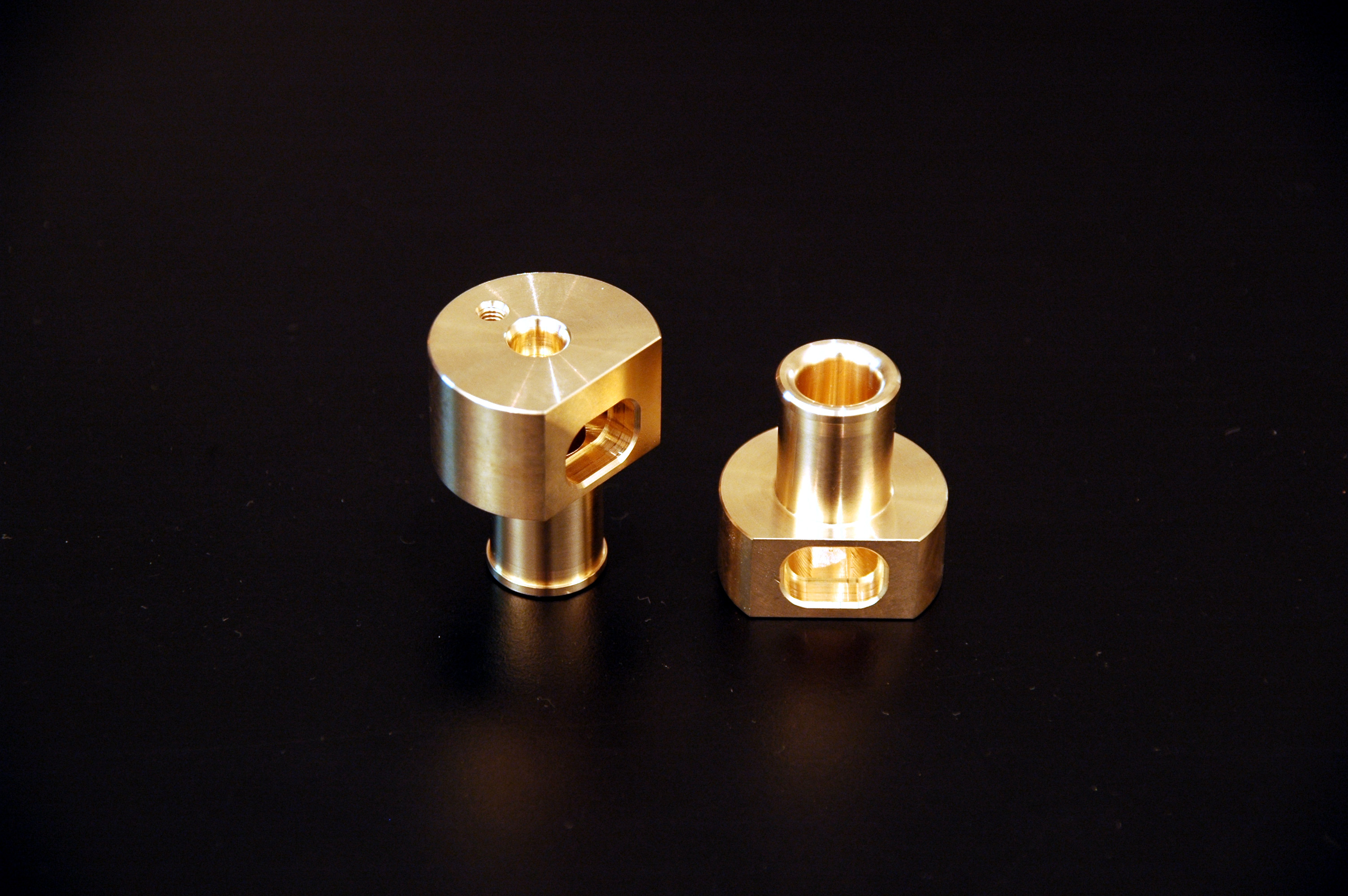

| The lateral hole is a complicated oval in shape 2 holes on the edge face are eccentric:
|
* See large photo (opens in another window).
| Equipment features | |
| Equipped with a Y-axis in addition to the C-axis. The bar type can process a product as large as φ51 mm. The chucker type can process a product up to φ250 mm. |
|
| Products can be fully processed within only a single process using the combined CNC lathe with 2 spindles and 2 saddles (bar type) equipped with the Y-axis. This example chooses process division as it achieves more efficient processing in this particular case. |
|
| Processing (up to approx. 50000 units can be produced monthly) | |
* Primary process |
* Secondary process |
| Processing with NC lathe | Machining center |
| Details of processing | Spots processed |
| Step cylinder | 2 holes including the lateral hole on the side and the eccentric hole on the edge face |
| A revolving chuck is used for the machining center to finish the process in a single chucking | |
